FOUR NIPPLE ELECTRICAL FLASHING
Our aluminum flashing for cables and pipes is used to seal natural gas pipes and electrical cables that supply mechanical units to the roof.
Attached files
Open or select files to share.
Description
Features

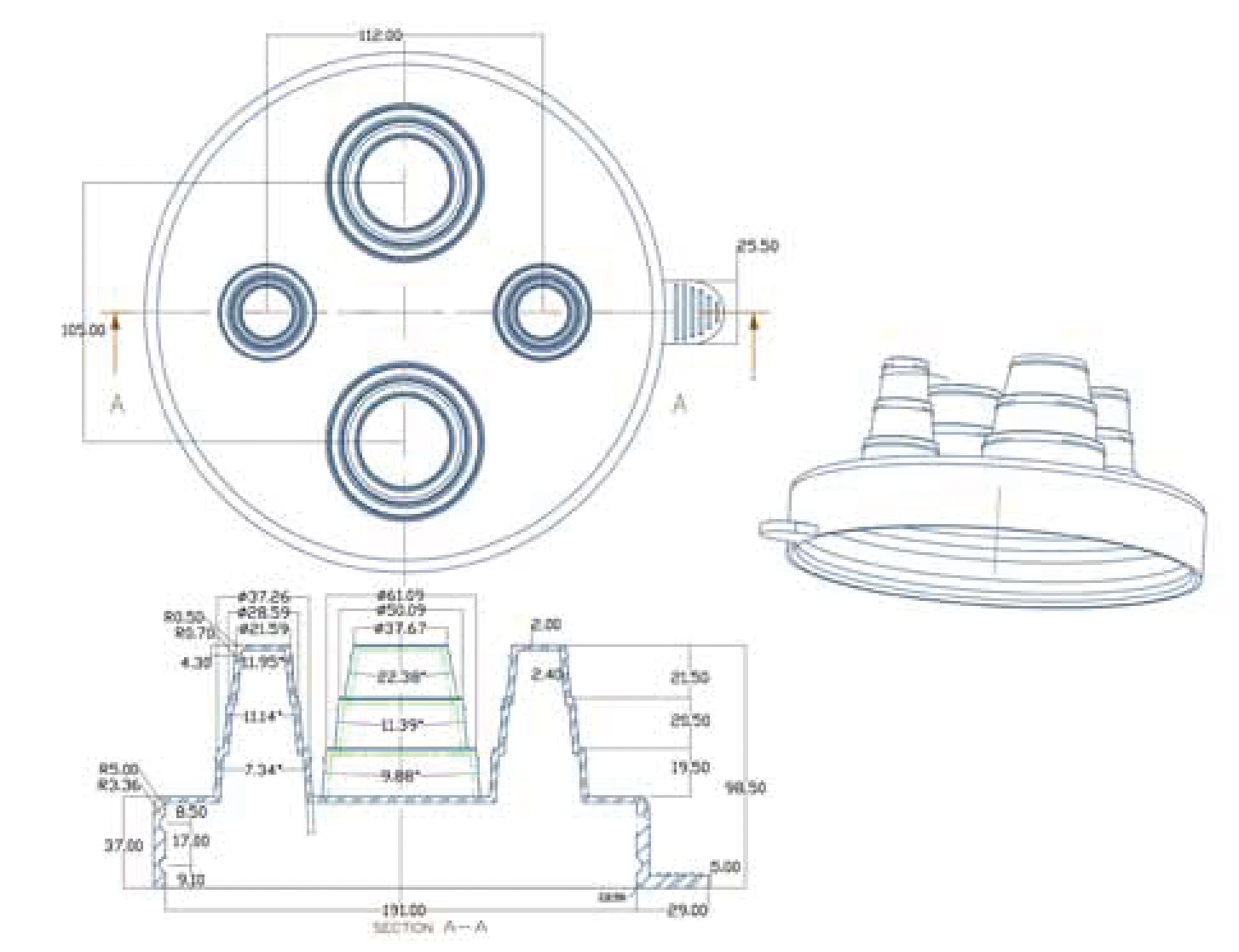

- EPDM and TVP boot designed for 4 separate wiring locations, each with their own variable diameter cut-out
- EPDM and TVP provide excellent flex fatigue resistance and ozone resistance
- 4 MJ clamps supplied to secure and seal openings around wiring as needed
- 2 large diameter 21/2” openings and 2 smaller 1½“ openings

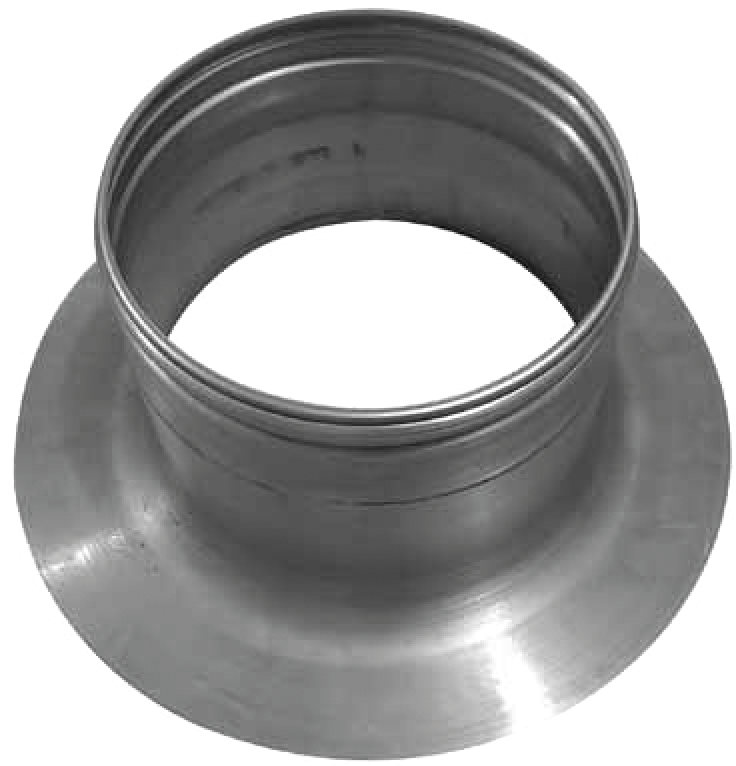

- EPDM boot top over a seam less spun aluminum base with double groove for secure fit

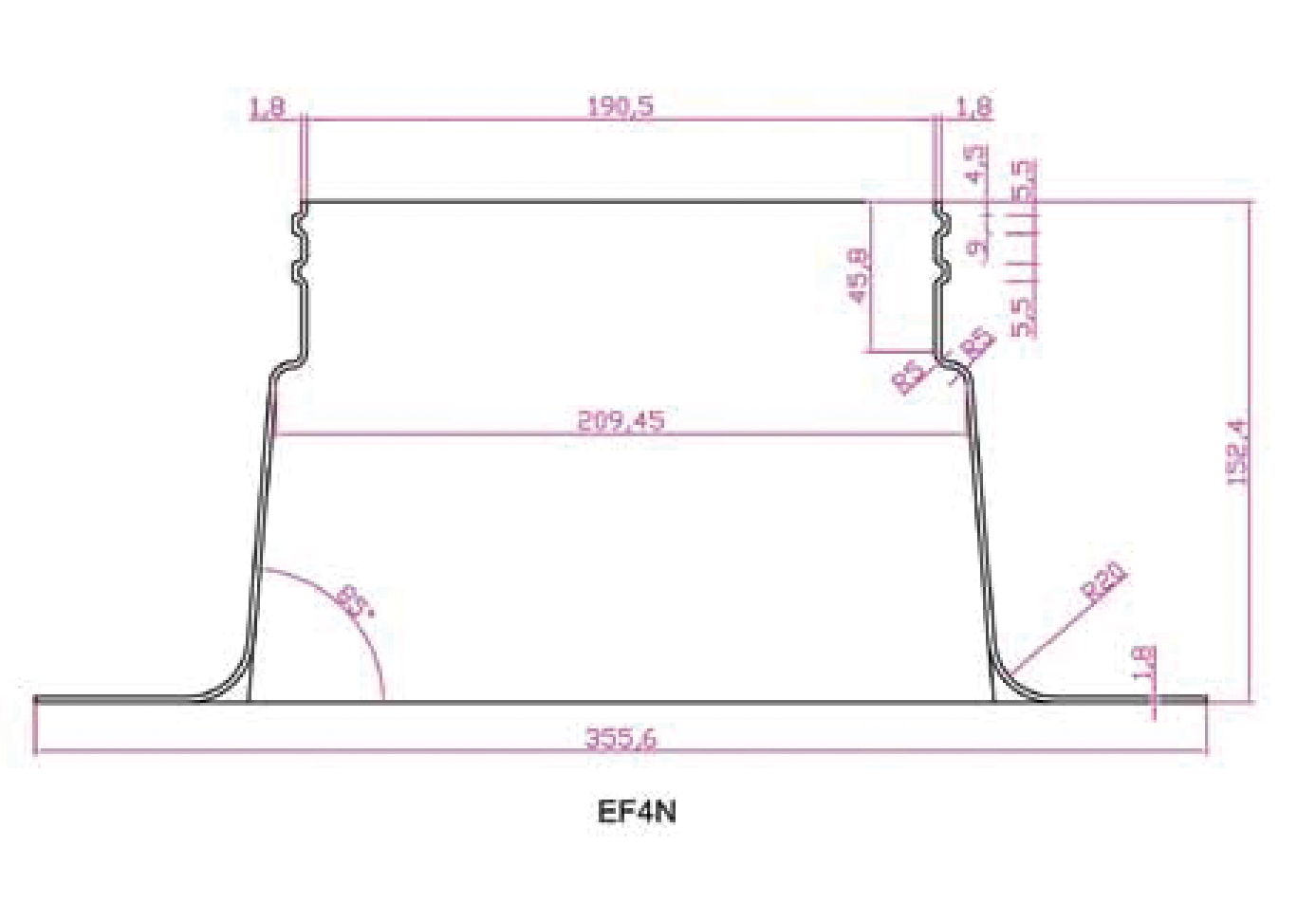

- Seamless spun aluminum base is 6“ high and 14” in diameter
- Total height with EPDM boot is 9” in height
- Ideal for multiple wiring applications on low slope roof
- Spun alum base EF4NW with 4” flange
