Self-supporting antenna support

MILLENIUM self-supporting antenna supports are designed for installing telecommunications equipment on flat roofs or parapets without compromising the building envelope’s integrity.

The system uses a self-supporting structure with counterweights, allowing for installation without penetrating the roof membrane while ensuring structural stability and long-term performance.

These supports are suitable for projects requiring a flexible, relocatable solution that complies with architectural and regulatory requirements.

Contact an Expert

Documents

Select the documents you want to download.

Key Benefits

  • Non-penetrating installation on roofing membrane
  • Building envelope protection
  • Self-supporting structure with counterweights ensuring optimal stability
  • Structural anchoring option available based on site conditions
  • Compatible with various types of antennas and technical equipment
  • Relocatable solution without permanent building modification
  • Facilitated access for maintenance and technical interventions


Technical Specifications

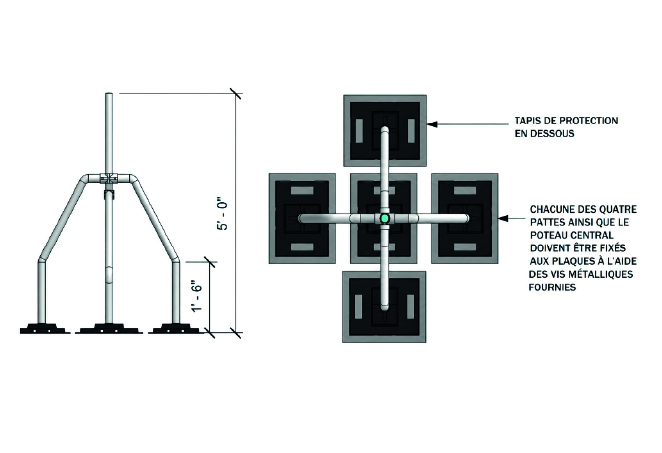

Fastening Assembly with provided self-tapping metal screws Roofing Protection Protection pads under each support point Standard Height: 5'-0" Alternative Heights: 1'-6" or 1'-0", depending on configuration Note: Height and specific configurations can be adapted to project needs and installation requirements.

Operation

  1. Position base plates on the roof with protection pads under each support point.
  2. Assemble the four legs and the central post.
  3. Securely fasten components to the plates using the provided metal screws.
  4. Verify system alignment and stability.
  5. Install the antenna according to the equipment manufacturer's recommendations.


Quality and Compliance

Quality Management: Product manufactured in accordance with an ISO 9001 certified quality management system ensuring process control, traceability, and continuous improvement. Structural Welds: All welding operations are performed in accordance with Canadian Welding Bureau (CWB) certification requirements. The system includes a one (1) year warranty on the paint finish and a ten (10) year warranty on all materials, starting from the date of purchase.
