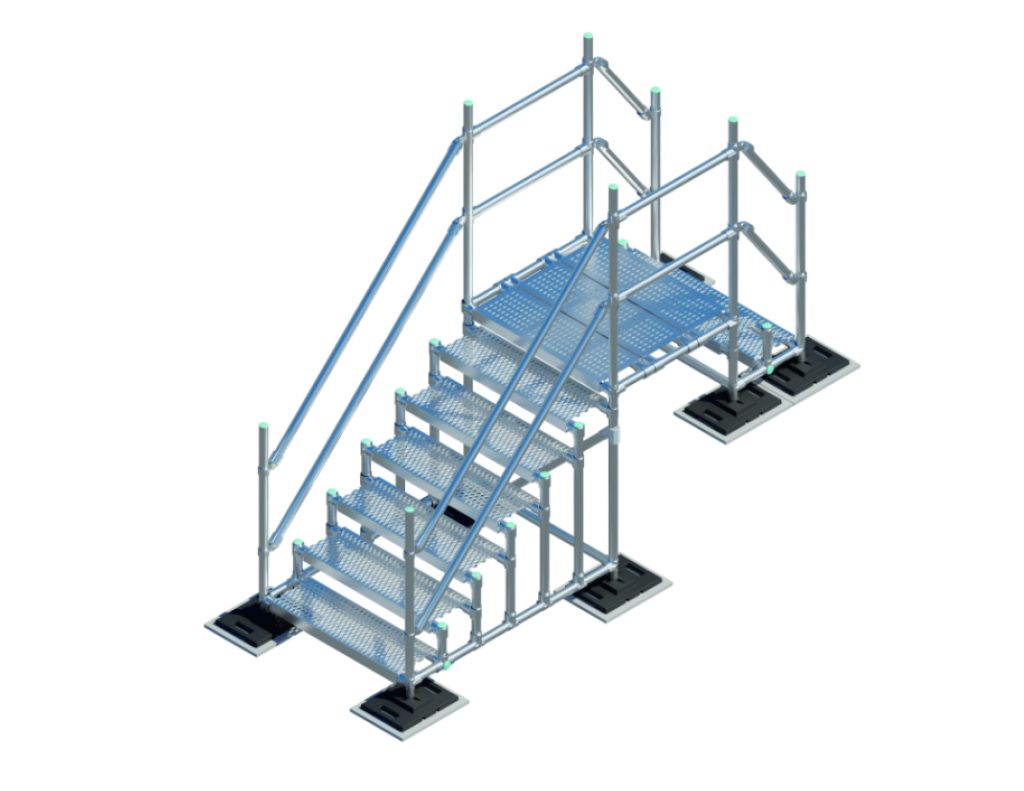

Freestanding Stairs and Walkways
Millenium’s freestanding stair and walkway systems are essential for ensuring the safe movement and circulation of workers on a rooftop. Our 100% freestanding designs allow for quick installation without compromising the roof’s waterproofing. All our stair and walkway systems are constructed from aluminum for long-term strength and durability.
Documents
Select the documents you want to download.
Safe Access
- Between two roof levels;
- To cross over expansion joints, ventilation ducts, electrical cables, or gas lines;
- To access water towers, chimneys, and any other rooftop equipment requiring regular high-altitude maintenance.
Advantages
- Completely modular system that adapts to all roof levels;
- Durable and robust, requires no maintenance;
- Natural aluminum or powder-coated with a thermosetting polyester-based paint according to our color range;
- Lightweight structure, safe for all roofing systems;
- Solid non-slip steps;
- No roof membrane penetration required during installation;
- Easy installation on all types of flat and low-slope roofs.
Assembly Parts
535 aluminum alloy sand casting fittings per the properties in the table below with threaded holes and stainless steelset screw inserts
- Elbow: 90-degree corner piece,
- Joints: linear union, T-shaped union, or Y-shaped union;
- Wall-mount flange: mounting piece receiving the crossbar tube.
Structural Parts
- Posts and rails: 6061-T6 aluminum tube, 48 mm (1.9”) diameter with plastic end caps.
- Stackable bases: 18.91 kg (41.7 lbs) counterweights made of cast steel per ASTM A-48 Class 30, including a 12 mm (1/2”) thick mat for roof system protection.
- Non-slip steps: Aluminum safety grating - 11 3/4” x 2”
