Freestanding Camera Support
The MILLENIUM – ACCESS Line freestanding support is a technical solution designed for the secure installation of surveillance cameras on flat roofs or parapets, without compromising the integrity of the existing waterproofing membrane.
The system combines a weighted base with a protective mat, a modular counterweight module, and an adjustable support structure, allowing adaptation to architectural constraints and site climatic conditions.
Documents
Select the documents you want to download.

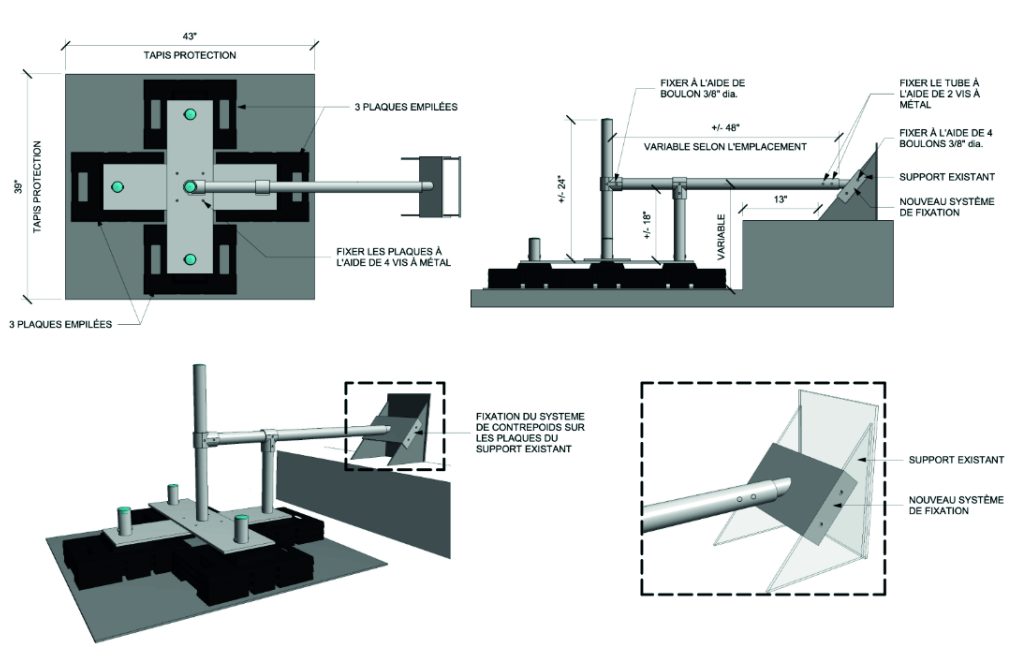

System components
Protection base:
- 43” x 39” protection mat
- Stacked plates (2 or 3 depending on configuration)
- Mechanical fastening via metal screws
- ± 48” vertical mast (varies by location)
- ± 24” vertical adjustment
- ± 18” variable horizontal arm
- Adjustable orientation
- 3/8” diameter bolts
- Tube fastening via metal screws
- Module compatible with existing support
Installation methods
Freestanding installation (standard): setup on protection mats without penetrating the roof membrane. Installation with structural anchoring (if required): fastening to walls, parapets, or existing structures via 3/8” mechanical bolting, without membrane penetration.
Applications
- Commercial roofing
- Industrial buildings
- Institutional projects
- Temporary or permanent installations
- Wind-exposed sites
Technical advantages
- Full maintenance of the roofing system's watertight integrity
- Modular solution adaptable to architectural constraints
- Stability reinforced by counterweight system
- Fast installation and simplified maintenance
- Compatible with existing structures
- Products manufactured under an ISO 9001 certified quality management system
- All welds are certified to CWB standards
