Fixed Lifeline Anchorage

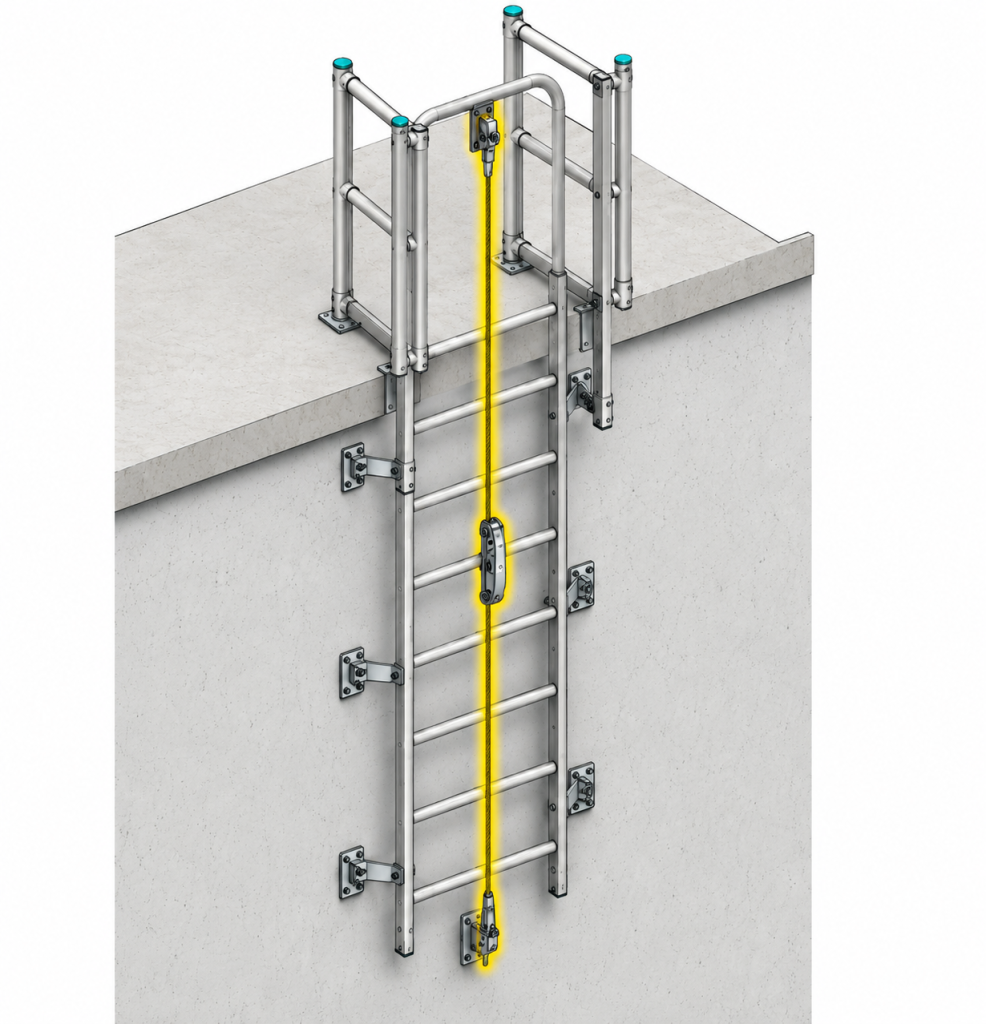

The Millenium vertical fall arrest system is designed to ensure worker safety during vertical movement on fixed ladders.
The system includes a guide device (rigid rail or cable) and a self-locking mobile fall arrest trolley that automatically immobilizes the user in case of a fall.
Compatible with existing or new ladders, it integrates with the requirements of modern projects for safety and regulatory compliance.
Documents
Select the documents you want to download.
Product Identification
Product Name: Millenium Vertical Fall Arrest System
Application: Fall protection for fixed ladders ≥ 6 m
Sectors:
- Industrial and commercial buildings
- Public infrastructure
- Telecommunications / energy
- Government projects (including DND)
Design Advantages
For Architects
- Discreet integration into existing structures
- Material options based on aesthetic and environmental constraints
- Compatible with new construction and renovation projects
- Compliant with CSA, EN, and OSHA standards
- Designed to withstand dynamic loads
- Integration capability with specific structural calculations
- Adaptable solutions based on building constraints
- Enhanced user safety
- Reduction of OSHA/CNESST risks
- Minimal maintenance
- Quick and simple inspection
System Components
The system includes, but is not limited to:
- Certified vertical guide rail or cable
- Connectors and junctions
- Mobile fall arrest device (trolley)
- End stops (≈ 12 kN)
- Mounting brackets and fasteners
- Structural anchors
- Safety harness compliant with EN 361 (optional)
Technical Specifications
Operating height: ≥ 6 m
System type: Rigid rail or cable
Function: Self-locking in case of fall
Compatibility: Existing or new ladders
Available Materials
- Aluminum
- Hot-dip galvanized steel
- Stainless steel
- Dynamic load resistance (CSA)
- High corrosion resistance
- Durability in industrial or outdoor environments
Compliance and Standards
The system complies with the following requirements:
- CSA Z259 – Fall Protection
- EN 353-1 / EN 353-2
- EN 361
- OSHA (depending on jurisdiction)
- Quebec Building Code
- Requirements applicable to DND projects
