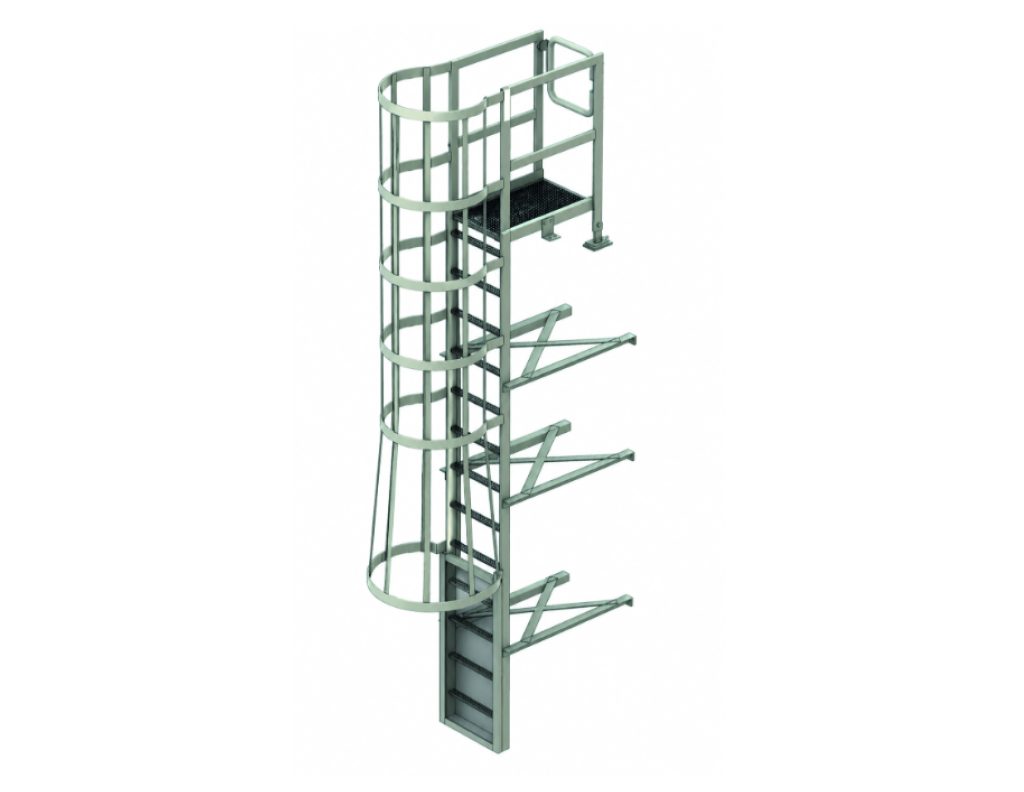

Fall protection for fixed ladders
The vertical fall protection system for fixed ladders of 6 meters and more is designed to secure high-access points in commercial, industrial, and institutional buildings.
It includes a vertical rail or cable with a mobile fall arrester allowing for fluid movement and automatic locking in the event of a fall.
Documents
Select the documents you want to download.
System Components
- Vertical guide rail attached to the ladder
- Rail connectors
- Mobile fall arrester
- End stops (≈12 kN)
- Rung attachment clamps
- Safety harness compliant with (EN 361)
Key Features
- Hands-free climbing support
- Smooth operation during ascent and descent
- Fast modular installation
- Multi-user compatible (depending on configuration)
- Heavy-duty construction for long service life
Applications
- Facilitates roof access
- Industrial, commercial, and institutional buildings
- Industrial facilities
- Towers and technical infrastructure
Technical Specifications
- Height: ≥ 6 m and up
- Materials: galvanized steel or stainless steel
- Self-locking system
- Compliant with dynamic safety loads
- Installation on new or existing fixed ladders
Standards and Compliance
- EN 353-1 / EN 353-2
- EN 361
- CSA Z259
- OSHA (jurisdiction dependent)
